SLITTER REWINDER MACHINES

  • Cost-efficient offline 100% inspection solution.
  • Optical camera recognize & record all defective in a data system by rewind process.
  • PrintFlow Manager system works with rewinder remove the defects.
  • AIS support the defect inspect on demand and final report editing.
  • The inspector roll report data sync with Won series rewinder slitter machine to finalise the defective labels remove and exchanged then slitting or sheeter  finishing process.
Model:HMS-330 HMS420HMS520
Max Speed: 300m/min 300m/min 300m/min
Web width:340mm430mm 530mm
Max unwinder Dia φ700mm φ700mm φ700mm
Max Rewinder Dia. φ700mm φ700mm φ700mm
Inspect Width:330mm 420mm520mm
Power Supply:3PH+N+PE3PH+N+PE3PH+N+PE
Air Supply: 0.8MPa 0.8MPa 0.8MPa
Weight:1.5T 1.8T 2.0T
Overall: 2900x1000x1400mm 2900x1000x1400mm 2900x1000x1400mm

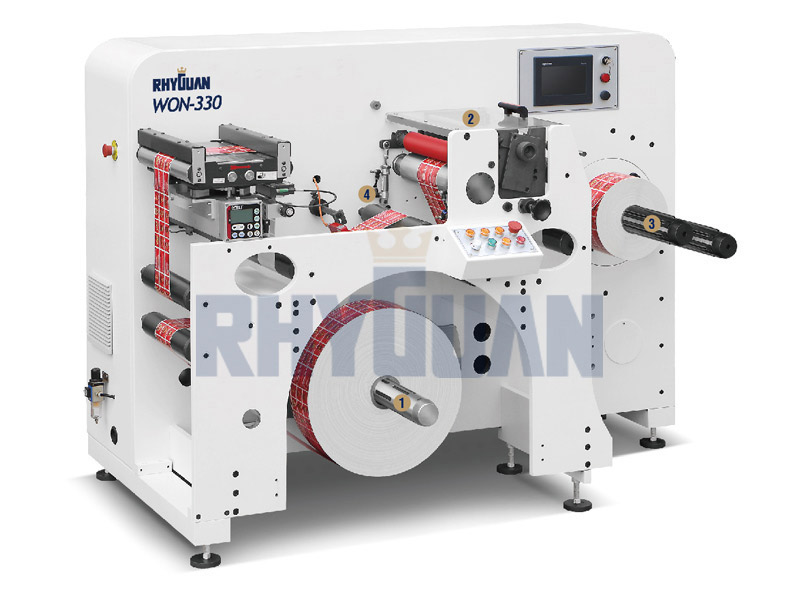

Developed by Rhyguan, Won series narrow web slitter rewinder machine is for top high level market with full servo driven system taper tension control system, top brand web guiding, turret rewind, support variable size shafts exchange, meter and number counting, static eliminator etc.

The ultimate configuration guarantee the excellent productivity and quality.

Model S330 S420 S520
Max Speed 300m/min300m/min300m/min
Max Web Width 340mm 430mm 530mm
Min Slit width16mm16mm16mm
Blades installed 6Sets6Sets6Sets
Max Unwind Diaφ700mmφ700mmφ700mm
Max Rewind Dia. φ400mmφ400mmφ400mm
Inspect Web Width330mm 420mm 520mm (optional)
Power Supply 3PH+N+PE3PH+N+PE3PH+N+PE
Air supply 0.8MPa0.8MPa0.8MPa
Weight1.5T1.5T1.5T
Overall2900x1000x1400mm2900x1000x1400mm2900x1000x1400mm
  • Cost-efficient offline 100% inspection solution.
  • Optical camera recognise & record all defective in a data system by rewind process.
  • PrintFlow Manager system works with rewinder remove the defects.
  • AIS support the defect inspect on demand and final report editing.
  • The inspector roll report data sync with Won series rewinder slitter machine to finalise the defective labels remove and exchanged then slitting or sheeter finishing process.

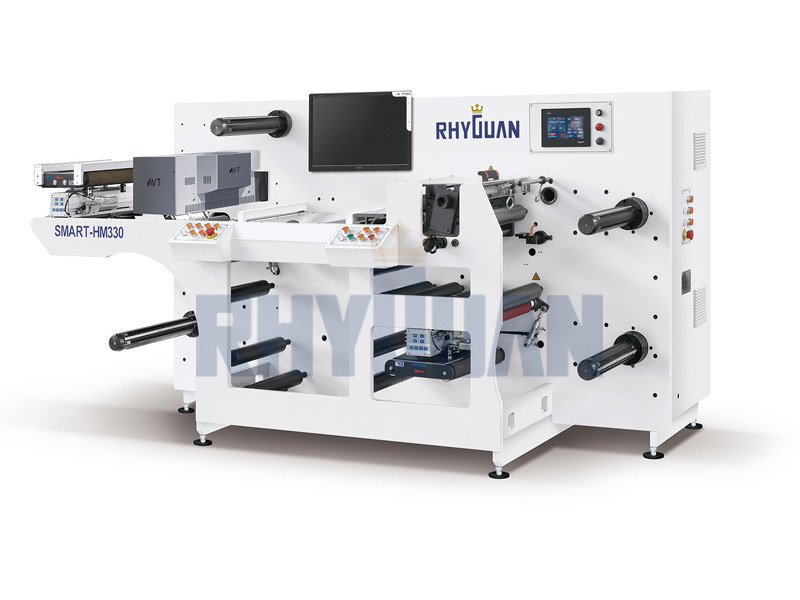

Model HM330HM420HM520
Max Speed 300m/min300m/min300m/min
Max Web Width 340mm 430mm 530mm
Max Unwind Diaφ700mmφ700mmφ700mm
Max Rewind Dia. φ700mmφ700mmφ700mm
Inspect Web Width330mm 420mm 520mm (optional)
Power Supply 3PH+N+PE3PH+N+PE3PH+N+PE
Air supply 0.8MPa0.8MPa0.8MPa
Weight1.5T1.5T1.5T
Overall2900x1000x1400mm2900x1000x1400mm2900x1000x1400mm
  • Cost-efficient offline 100% inspection solution.
  • Optical camera recognise & record all defective in a data system by rewind process.
  • PrintFlow Manager system works with rewinder remove the defects.
  • AIS support the defect inspect on demand and final report editing.
  • The inspector roll report data sync with Won series rewinder slitter machine to finalise the defective labels remove and exchanged then slitting or sheeter finishing process.
Model HMS330 HMS420 HMS520
Max Speed 300m/min300m/min300m/min
Max Web Width 340mm 430mm 530mm
Max Unwind Diaφ700mmφ700mmφ700mm
Max Rewind Dia. φ700mmφ700mmφ700mm
Inspect Web Width330mm 420mm 520mm
Power Supply 3PH+N+PE3PH+N+PE3PH+N+PE
Air supply 0.8MPa0.8MPa0.8MPa
Weight1.5T1.5T1.5T
Overall2900x1000x1400mm2900x1000x1400mm2900x1000x1400mm

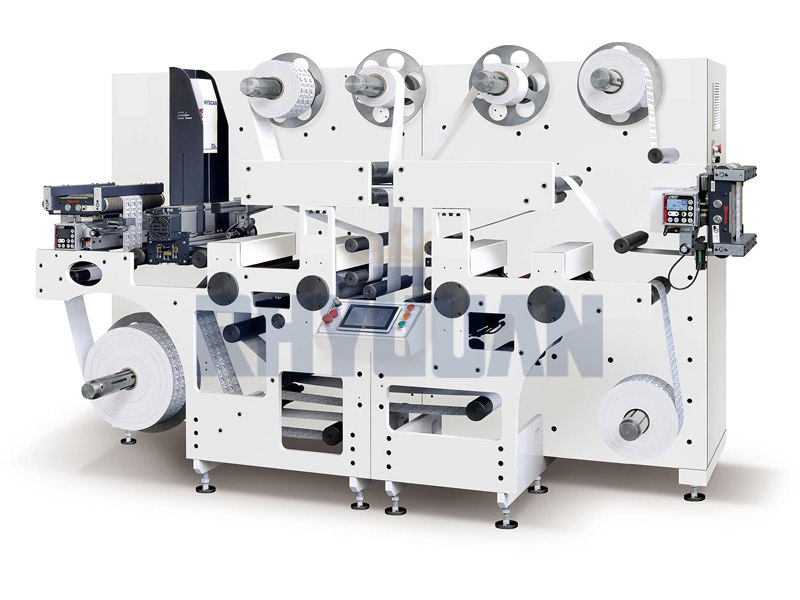

The World class smart machine by Rhyguan patented, represent powerful technology of automatic label exchange and labelling works with optical inspector support.This machine help reduce the labor pressure as the machine is full automatic without any stop until one roll finished.The defect label recycles in a roll without a piece missing,Smart series provide the demanding labels and gain big competition ablity, also good benefits for you.

Model SD-330
Max Speed 100m/min
Tag length range30mm-350mm
Max Web Width 340mm
Max Unwind Dia. φ700mm
Max Rewind Dia.φ700mm
Qualified Label Unwind Dia. φ450mm
Defect label rewind Dia. φ450mm
Inspect Web Width 330mm
Power Supply3PH+N+PE
Air supply0.8MPa
Weight1.8T
Overall 2700x1200x1500mm
